Mini LED Backlit Module

Specifications

The Mini is the workhorse of our sign module range and is suitable for all medium-sized channel letters and sign cabinets. The Mini is suitable for most LED back lighting applications in boxes as shallow as 80mm with its unique "Batwing Optical Lems" providing Spot Free illumination. Internal constant current IC maintains perfect operating current to ensure maximum life.

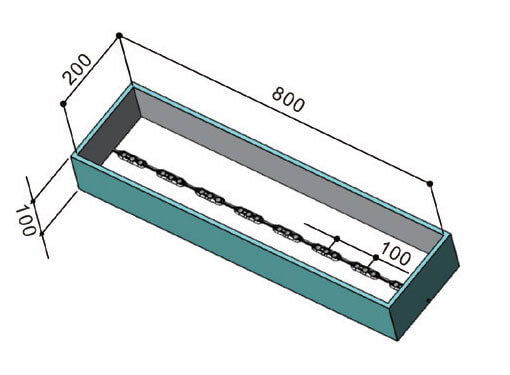

Suitable for 80 - 150mm depth
160° Bat-Wing Optical Lens
3 Step MacAdam colour binning
Constant current onboard technology

Frequently Asked Questions

What are LED modules used for?

Our LED modules are ideal for sign and channel letter illumination, backlighting, display cases and commercial lighting applications where compact, bright light sources are needed.

How are the modules mounted and wired?

Modules mount quickly with self-adhesive backing or screws and wire together in a chain back to a low-voltage power supply, making large installations straightforward.

Are they suitable for outdoor signage?

Many of our modules carry weather-resistant ratings for outdoor sign work - check the specification sheet, or contact us and we will confirm the right choice.

What power supply do they need?

Modules run on low-voltage constant-voltage power. We can help you select and size the correct driver for the number of modules in your sign or project.

Do you deliver the Mini LED Backlit Module New Zealand-wide?

Yes. Specialized Lighting Concepts dispatches the Mini LED Backlit Module nationwide from our Auckland warehouse. Freight is calculated at checkout, and you are welcome to contact us for a quote on larger or trade orders.

Need help with your layout?

Contact our expert sales team or use the LED System Designer on the website for more detailed layouts.

Contact our sales team LED System Designer Coming soon

Downloads

PDFMINI led sign module specPDF, PDFSIGN ILLUMINATION SYSTEMSPDF,
